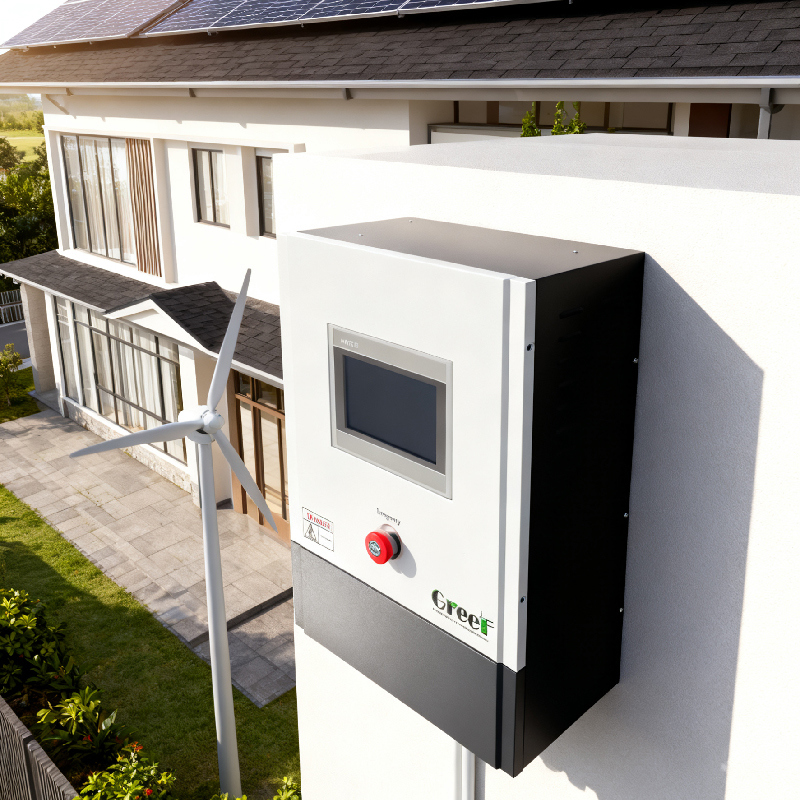

Name: On Grid Controller with IP65 Outdoor Protection, Double Safety Control Systems, and Three-Phase Dump Load Brake System
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

Nhà > các sản phẩm > Trên bộ điều khiển lưới >

On Grid Controller with IP65 Outdoor Protection, Double Safety Control Systems, and Three-Phase Dump Load Brake System

IP65 Outdoor Protection On Grid Controller

Double Safety Control Systems Grid-Tied Controller

Three-Phase Dump Load Brake System Wind Turbine Controller

Hàng hiệu:

Greef

Chứng nhận:

Model Number:

GT-PCTC Series Controller

Liên hệ với chúng tôi

Yêu cầu Đặt giá

Chi tiết sản phẩm

Mức độ bảo vệ:

IP20 (Trong nhà) IP65 (Ngoài trời)

Tần số đầu ra:

50Hz/60Hz

Điện áp định mức tuabin gió:

AC220V-600V

Điện áp không đổi PWM:

≥400dc, ≥700dc

Loại sản phẩm:

Bảo vệ quá áp, Bảo vệ cắt lưới, Đầu ra nguồn được điều chỉnh, Bộ chống sét

Phương pháp làm mát:

Sự đối lưu tự nhiên

Chức năng:

Bộ chỉnh lưu, điều khiển, đầu ra DC

Giao diện truyền thông (tùy chọn):

RS485/USB/GPRS/WIFI/Ethernet

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity

1Set

Giá bán

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Điều khoản thanh toán

T/T, Liên minh phương Tây, Moneygram, L/c

Supply Ability

NHỮNG SẢM PHẨM TƯƠNG TỰ

băng hình

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

Nhận được giá tốt nhất

băng hình

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

Nhận được giá tốt nhất

băng hình

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

Nhận được giá tốt nhất

băng hình

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

Grid-Tied Power Curve Controller with 99.9% MPPT Efficiency

The GT-PCTC series grid-tied controller is a critical component for wind generator on-grid systems, converting three-phase AC current from wind turbines into DC current for transmission to grid-tie inverters. This advanced controller features dual safety systems and seamless integration with leading solar inverters.

Key Features

PWM constant voltage system (≥700V DC capability)
Three-phase dump load brake system
99.9% MPPT efficiency for optimal power conversion
Compatible with Growatt, Deye, Solis, and Ivet solar inverters
LCD touch screen display with comprehensive monitoring
Double safety control systems for reliable operation

Technical Specifications

Parameter	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
3-phase dump load voltage	450±5Vdc		750±5Vdc
PWM constant voltage	≥400Vdc		≥700Vdc
Environment temperature	-30°C to 60°C
Degree of protection	IP20 (Indoor) / IP65 (Outdoors)

System Functions

Primary Functions:

Rectifier, Control, DC Output

Automatic Protection:

Over voltage protection, Grid cut off protection, Regulated supply output, Arrester

Manual Controls:

Manual brake, Reset, Emergency switch

Display Parameters:

Generator speed, Input/output voltages/currents, Power generation statistics, Power Curve setting

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Greef provides custom system solutions - contact us for specific requirements

Customization Options

Brand:

Greef

Model Series:

GT-PCTC

Certification:

MPPT Efficiency:

99.9%

Output Frequency:

50Hz/60Hz

Cooling Method:

Natural Convection

Packaging & Shipping

Each controller is securely packaged in foam-lined plywood cases for maximum protection during transit. Orders ship within 1-2 business days with tracking provided.
