Name: On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Nhà > các sản phẩm > Trên bộ điều khiển lưới >

On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions

240-550V AC Voltage Range On Grid Controller

95% Maximum Efficiency Grid Tied Controller

LCD SMART Touch Screen Energy Management Controller

Hàng hiệu:

Greef

Chứng nhận:

Model Number:

AC PCS

Liên hệ với chúng tôi

Yêu cầu Đặt giá

On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions

Chi tiết sản phẩm

Hiệu suất tối đa(%):

95%

Dải điện áp pin (Vdc):

350 - 450

Tần số lưới định số ((Hz):

50HZ/60HZ

Dòng điện xoay chiều tối đa (A):

180

Sức mạnh định mức (kW):

100

Điện áp lưới định mức (V):

400

Chế độ liên lạc:

Ethemet, RS485, WIFI

Cấu trúc liên kết:

Bộ chỉnh lưu AC-DC, Bộ tăng áp DC- DC, Bộ biến tần DC-AC.EMS

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity

1Set

Giá bán

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Điều khoản thanh toán

T/T, Liên minh phương Tây, Moneygram, L/c

Supply Ability

NHỮNG SẢM PHẨM TƯƠNG TỰ

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Nhận được giá tốt nhất

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Nhận được giá tốt nhất

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Nhận được giá tốt nhất

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

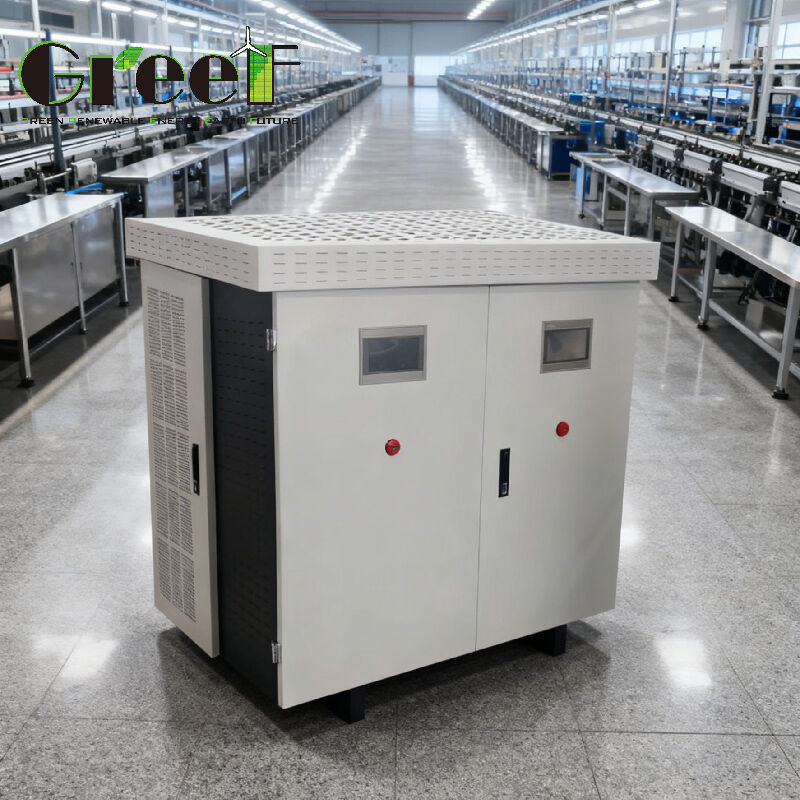

AC/DC Multi-Functional Power Converter with SMART Touch Screen

GREEF ENERGY's multi-functional converter integrates multiple essential power management functions into a single compact unit. Designed specifically for permanent magnet generators (PM generators), it provides efficient AC-to-DC rectification for battery charging and DC-to-AC inversion capabilities. The system incorporates a comprehensive energy management system to optimize overall performance and reliability.

Technical Specifications

Generator AC Input Parameters

Rated Power	100 kW
Rated Voltage	≥320 Vac
Optimal Rated Voltage	450 Vac
AC Voltage Range	240-550 Vac
Maximum AC Current	180 A

Battery Input Data

Battery Type	Lithium-ion
Voltage Range	350-450 Vdc
Rated Battery Voltage	400 Vdc
Max Charge/Discharge Current	250 A

Grid-Connected Output Parameters

Rated Power	100 kW
Maximum Power	120 kW
Rated Current	144 A
Maximum Current	173 A
Grid Voltage Range	300-460 V
Grid Frequency	50/60 Hz
Total Harmonic Distortion	<3%
Power Factor	>0.99 (-1 to 1)

System Performance & Protection

Maximum Efficiency
95%

Overload Capacity
1.2x nominal power for 1 minute

Protection Level
IP54

Operating Temperature
-40°C to 60°C

Key Features

Dual LCD touchscreen interface for intuitive control
Advanced voltage and frequency control for PMSG systems
Grid-tied operation capability with grid charging
Comprehensive protection features including overvoltage, short-circuit, and surge protection
Intelligent air cooling system
Multiple communication interfaces: Ethernet, RS485, WiFi
Remote monitoring and configuration capabilities

Applications

This versatile converter system serves multiple power management applications including renewable energy integration, off-grid power systems, industrial backup power, and grid-interactive installations.

Renewable Energy
Integration of PMSG from wind/hydro turbines

Off-Grid Systems
Remote sites, cabins, telecommunications

Grid-Interactive
Grid synchronization and battery charging

Industrial/Commercial
Backup power and building management integration

Customization & Ordering

AC PCS Model Features:
• 100 kW rated power with 400 Vdc battery voltage
• 450 Vac optimal generator voltage (240-550 Vac range)
• CE certified for quality and safety
• Multiple communication modes: Ethernet, RS485, WiFi

Order Information:
• Minimum Order: 1 set
• Delivery: 25 working days
• Payment: T/T, Western Union, MoneyGram, L/C
• Packaging: Secure foam and plywood cases
