Name: 95% Maximum Efficiency On Grid Controller with 240-550V AC Voltage Range and LCD Smart Touch Screen
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Nhà > các sản phẩm > Trên bộ điều khiển lưới >

95% Maximum Efficiency On Grid Controller with 240-550V AC Voltage Range and LCD Smart Touch Screen

95% Maximum Efficiency On Grid Controller

240-550V AC Voltage Range AC Generator-Battery Hybrid Converter

LCD Smart Touch Screen Energy Management Controller

Hàng hiệu:

Greef

Chứng nhận:

Model Number:

AC PCS

Liên hệ với chúng tôi

Yêu cầu Đặt giá

95% Maximum Efficiency On Grid Controller with 240-550V AC Voltage Range and LCD Smart Touch Screen

Chi tiết sản phẩm

Hiển thị nội dung:

Tốc độ máy phát điện (vòng/phút), Điện áp đầu vào (Vdc), Dòng điện đầu vào (Vac), Công suất đầu ra (

Cấu trúc liên kết:

Bộ chỉnh lưu AC-DC, Bộ tăng áp DC- DC, Bộ biến tần DC-AC.EMS

Điện áp lưới định mức (V):

400

Trưng bày:

Màn hình cảm ứng thông minh LCD

Hiệu suất tối đa(%):

95%

Chế độ liên lạc:

Ethemet, RS485, WIFI

Phương pháp làm mát:

Làm mát không khí thông minh

Phạm vi làm việc điện áp AC (Vac):

240 ~ 550

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity

1Set

Giá bán

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Điều khoản thanh toán

T/T, Liên minh phương Tây, Moneygram, L/c

Supply Ability

NHỮNG SẢM PHẨM TƯƠNG TỰ

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Nhận được giá tốt nhất

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Nhận được giá tốt nhất

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Nhận được giá tốt nhất

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

AC Generator-Battery Hybrid Converter

Achieve maximum 95% efficiency with this advanced on-grid controller featuring AC voltage working range of 240-550 Vac and compatibility with 50Hz/60Hz grid frequencies.

Product Overview

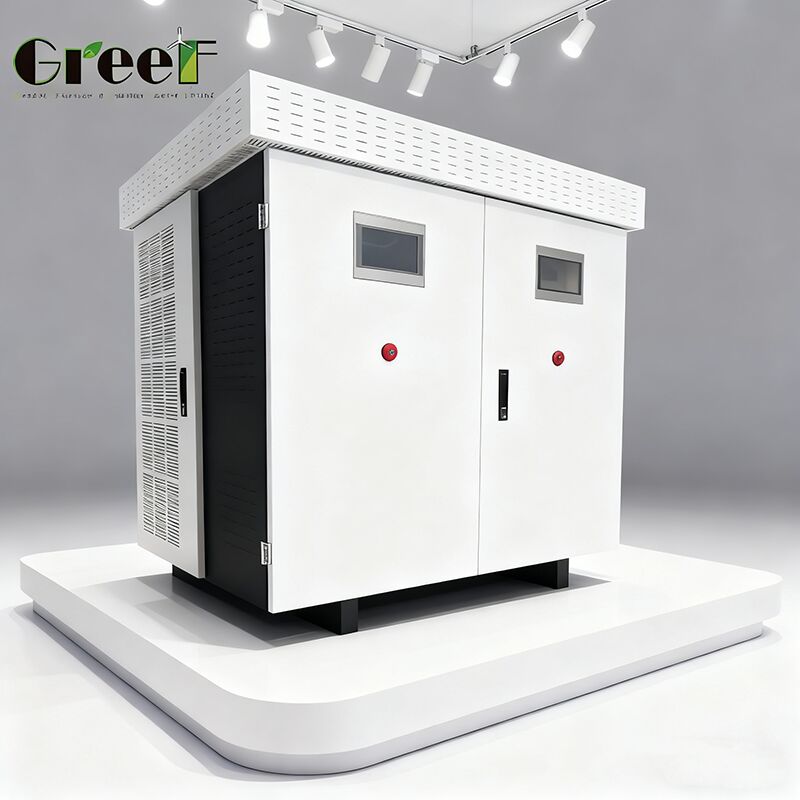

The GREEF ENERGY multi-functional converter integrates multiple critical functions into a single robust unit. It provides AC-to-DC rectification for Permanent Magnet generators, enabling efficient battery charging, plus DC-to-AC inversion to convert stored DC power back to usable AC power.

Equipped with a configurable dual LCD touchscreen for intuitive monitoring and control, this converter utilizes advanced technology to maintain stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs), ensuring reliable uninterrupted power supply.

Technical Specifications

Parameter Category	Specifications
Generator AC Input	Rated Power: 100 kW Rated Voltage: ≥320 Vac Optimal Voltage: 450 Vac Operating Range: 240-550 Vac Max AC Current: 180 A
Battery Input	Battery Type: Lithium-ion Voltage Range: 350-450 Vdc Rated Voltage: 400 Vdc Max Charge/Discharge Current: 250 A
Grid-Connected Output	Rated Power: 100 kW Maximum Power: 120 kW Rated Current: 144 A Max Current: 173 A Grid Voltage: 400 V Voltage Range: 300-460 V Grid Frequency: 50Hz/60Hz THD: <3% Power Factor: >0.99
Performance & Protection	Maximum Efficiency: 95% Overload Capacity: 1.2x nominal power for 1 minute Operating Temperature: -40°C to 60°C Protection Level: IP54 Max Altitude: 4,000 meters

Key Features

Advanced converter topology with AC-DC rectifier, DC-DC buck-boost, and DC-AC inverter
Integrated Energy Management System (EMS)
Configurable grid-tied operation mode
Comprehensive protection systems including over voltage, speed protection, and surge protection
Intelligent air cooling technology
Multiple communication interfaces: Ethernet, RS485, WIFI
LCD Smart Touch Screen display with real-time monitoring

Applications

This versatile converter system excels in renewable energy integration, off-grid power solutions, and industrial power management applications.

Permanent Magnet Synchronous Generators from wind and hydro turbines
Off-grid and hybrid power systems for remote locations
Grid-interactive applications with battery charging and feed-in capability
Industrial and commercial power management with remote monitoring
Specialized control features for micro-hydropower plants

Customization & Ordering

Manufactured in China with CE certification. Features PWM unloading + three-phase unloading system. Delivery within 25 working days with secure packaging.
