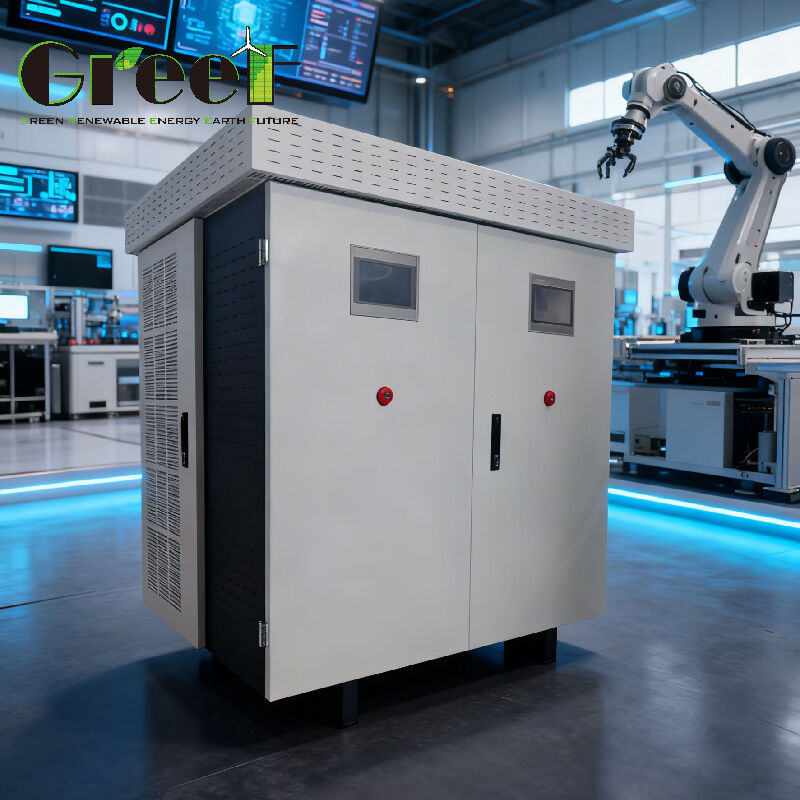

Name: 100 kW Rated Power On Grid Controller with Lithium-Ion Battery and LCD SMART Touch Screen for Energy Management
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Nhà > các sản phẩm > Trên bộ điều khiển lưới >

100 kW Rated Power On Grid Controller with Lithium-Ion Battery and LCD SMART Touch Screen for Energy Management

100 kW Rated Power On Grid Controller

Lithium-Ion Battery AC Generator-Battery Hybrid Converter

LCD SMART Touch Screen Energy Management Controller

Hàng hiệu:

Greef

Chứng nhận:

Model Number:

AC PCS

Liên hệ với chúng tôi

Yêu cầu Đặt giá

100 kW Rated Power On Grid Controller with Lithium-Ion Battery and LCD SMART Touch Screen for Energy Management

Chi tiết sản phẩm

Nhiệt độ môi trường xung quanh(°C):

-40 ~ 60

Điện áp pin định mức (Vdc):

400

Điện áp định mức (VAC):

≥ 320

Chế độ liên lạc:

Ethemet, RS485, WIFI

Cấp độ bảo vệ:

IP54

Loại pin:

Liti-ion

Trưng bày:

Màn hình cảm ứng thông minh LCD

Hiệu suất tối đa(%):

95%

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity

1Set

Giá bán

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Điều khoản thanh toán

T/T, Liên minh phương Tây, Moneygram, L/c

Supply Ability

NHỮNG SẢM PHẨM TƯƠNG TỰ

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Nhận được giá tốt nhất

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Nhận được giá tốt nhất

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Nhận được giá tốt nhất

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

AC Generator-Battery Hybrid Converter 100 kW On Grid Controller

GREEF ENERGY's multi-functional converter integrates multiple capabilities into a single device, performing AC-to-DC rectification for permanent magnet generators, battery charging, and DC-to-AC inversion with comprehensive energy management optimization.

Key Features

EMS Smart Energy Management System

Multiple configurable operating modes: off-grid, grid-tied, and grid charging
Double LCD smart touchscreen display for easy monitoring and control
Advanced generator power curve tracking technology
AC/DC dual backup auxiliary power supply
Control technology for unbalanced loads
RS-485 Modbus RTU protocol for system integration
Optional PWM dump load protection for over voltage and over speed
Optional water gate motor control feature
Remote monitoring via WiFi/LAN app
Customized sensor control functions
Static Transfer Switch (STS) integration for grid-tie and off-grid applications

Technical Specifications

General Parameters

Rated Power	100 kW
Rated Voltage	≥ 320 Vac
Optimal Generator Rated Voltage	450 Vac
AC Voltage Working Range	240 - 550 Vac
Maximum AC Current	180 A

Battery Specifications

Battery Type	Lithium-ion
Voltage Range	350 - 450 Vdc
Rated Battery Voltage	400 Vdc
Max Charging/Discharging Current	250 A

Grid-Connected Output

Rated Power	100 kW
Maximum Power	120 kW
Rated Current	144 A
Maximum Current	173 A
Grid Voltage	400 V
Grid Voltage Range	300 - 460 V
Grid Frequency	50/60 Hz
Total Harmonic Distortion	< 3%
Power Factor	> 0.99 (adjustable -1 to 1)
Overload Capacity	1.2x nominal power for 1 minute

Off-Grid AC Parameters

Rated Input Voltage	400 V
Voltage Deviation	±2%
THD with Linear Loads	< 3%

Protection Features

Optional overvoltage and speed protection
AC short-circuit protection
AC output overcurrent protection
Level 2 surge protection

Applications

Renewable Energy Systems: Integration with PMSG from wind turbines or hydro turbines for off-grid or hybrid power systems.

Off-Grid & Backup Power: Central hub for power conversion and management in remote sites, cabins, and telecom stations.

Grid-Interactive Systems: Grid-tied operation for battery charging and surplus power feedback.

Industrial & Commercial Power Management: Stable power supply under unbalanced loads with remote monitoring via WiFi/LAN and Modbus integration.

Specialized Control Functions: Water gate motor control for micro-hydropower plants and Static Transfer Switch integration.

Customization Options

Model AC PCS supports AC voltage range 240-550 Vac with optimal generator voltage of 450 Vac. Achieves 95% maximum efficiency and operates in temperatures from -40 to 60℃.

Advanced monitoring for wind turbine speed and wind speed. Minimum order quantity: 1 set. Delivery: 25 working days. Payment options: T/T, Western Union, MoneyGram, L/C.

Packaging & Shipping

Securely packaged in durable, eco-friendly boxes with custom-fit foam inserts. Includes user manual, installation accessories, and necessary cables. Worldwide shipping with tracking and fragile handling.
