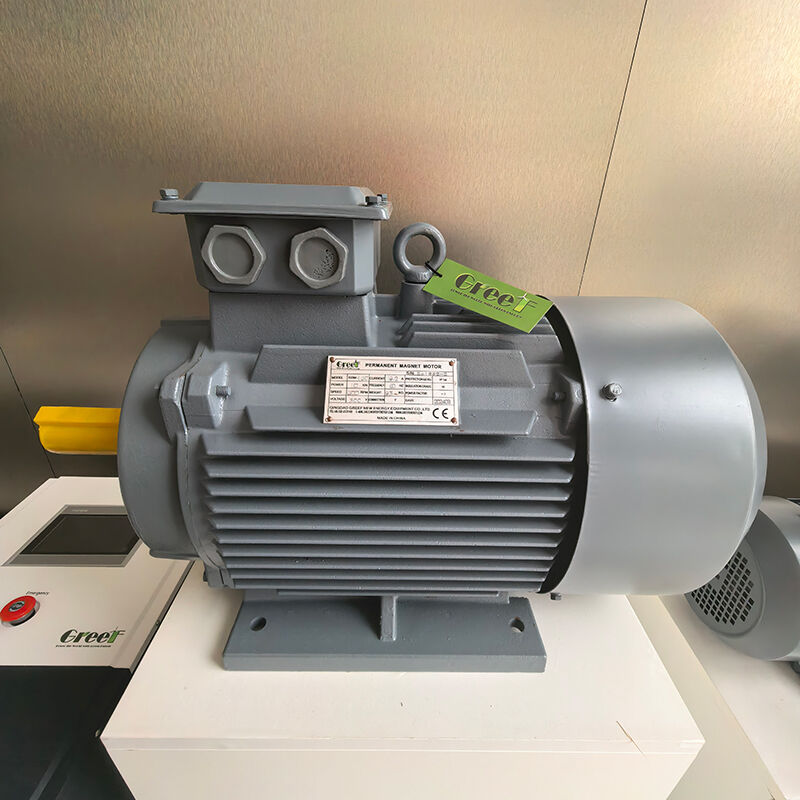

High Efficiency Exceeding 95% 6 Poles H Insulation Grade Permanent Magnet Motor Synchronous Magnet Motor

permanent magnet motor generator

high efficiency magnet motor

energy conversion magnet motor

Hàng hiệu:

Greef

Chứng nhận:

Model Number:

TYP

Liên hệ với chúng tôi

Yêu cầu Đặt giá

High Efficiency Exceeding 95% 6 Poles H Insulation Grade Permanent Magnet Motor Synchronous Magnet Motor

Chi tiết sản phẩm

Tên sản phẩm:

Động cơ nam châm vĩnh cửu

Tính thường xuyên:

50/60Hz

Chất liệu vỏ máy phát điện:

gang

Mức độ cách nhiệt:

điện trở cách điện:

Tối thiểu 100Mohm (500Vdc)

Loại động cơ:

Nam châm vĩnh cửu

Loại sản phẩm:

Động cơ

Số lượng cực:

Điều khoản thanh toán & vận chuyển

Minimum Order Quantity

1Set

Giá bán

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Điều khoản thanh toán

T/T, Liên minh phương Tây, Moneygram, L/c

Supply Ability

NHỮNG SẢM PHẨM TƯƠNG TỰ

băng hình

Low Noise Operation High Efficiency Permanent Magnet Motor with Constant Torque for Electric Vehicles and Industrial Automation

Nhận được giá tốt nhất

băng hình

6 Poles Permanent Magnet Motor with 0-8000 RPM Speed Range and IP54 Classification for Industrial Applications

Nhận được giá tốt nhất

băng hình

High Efficiency Greater Than 95% Permanent Magnet Motor with 0-8000 RPM and IP54 Classification

Nhận được giá tốt nhất

băng hình

IP54 Classification Permanent Magnet Motor with 0-8000 RPM Speed Range and High Efficiency for Industrial Applications

Nhận được giá tốt nhất

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

Mô tả sản phẩm

Permanent Magnet Motor Type Magnet Motor Generator

High-efficiency motor generator designed for energy conversion with efficiency exceeding 95%

Product Overview

TYP Magnet motors feature rotors equipped with permanent magnets, delivering enhanced performance through higher efficiency and greater power density relative to frame size. These compact yet powerful motors are controlled using frequency inverters to ensure consistent torque output across a broad speed range. They maintain high efficiency even at lower speeds without requiring forced ventilation, operating quietly while providing significant energy savings for environmentally friendly applications.

Key Features

High Efficiency and Energy Saving: Saves up to 30% energy compared to induction motors, with efficiency maintained across 20% to 110% load range. Achieves power factor close to 1.0, reducing stator current and copper losses.
Constant Torque Across Wide Speed Range: Delivers consistent torque without forced ventilation or encoder requirements.
Long Bearing Life and Low Maintenance: L10 bearing life rating of 100,000 hours (over 10 years continuous operation) with grease nipples for easy re-lubrication.
High-Performance Permanent Magnets: Utilizes NdFeB rare-earth magnets with 18x greater magnetic strength than ferrite magnets, featuring epoxy coating for mechanical strength and corrosion resistance.
Integrated Thermal Protection: Embedded PTC thermistors protect against overheating from phase loss, overloads, or voltage fluctuations.
Synchronous Operation and Stable Speed: Rotor speed synchronized with stator magnetic field eliminates slip and rotor power loss.
Low Operating Current: Maximum torque/current ratio control reduces stator current by 15-30%, decreasing cable transmission losses.
Lower Temperature Rise: 15-20°C lower temperature rise than comparable asynchronous motors, extending equipment life.
Significant Cost Savings: Replacing 37kW IE2 induction motor can save approximately 9,000 RMB annually with 24/7 operation.

Applications

TYP series high-efficiency permanent magnet frequency conversion synchronous motors are versatile solutions for various industries including injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food processing machines, extruders, wire drawing machines, and pharmaceutical equipment. Requires dedicated permanent magnet motor inverter for optimal performance.

Customization Options

Greef offers customizable TYP model Permanent Magnet Motors from China. These 3-phase AC Synchronous Motors feature 6 poles, 50/60Hz frequency, IP54 protection, and H-grade insulation. Flexible customization for low-speed applications with minimum order of 1 set. All products are CE certified with negotiable pricing.

Packaging & Delivery

Permanent Magnet Motors are securely packaged with protective materials in sturdy cartons, with bulk orders in reinforced crates or pallets. Shipping options include air freight, sea freight, and express courier services with tracking and insurance. Each motor undergoes thorough inspection and testing before shipment. Delivery time: 25 working days. Payment methods: T/T, Western Union, MoneyGram, L/C.
