Hàng hiệu:
Greef
Chứng nhận:
CE
Model Number:
TYP

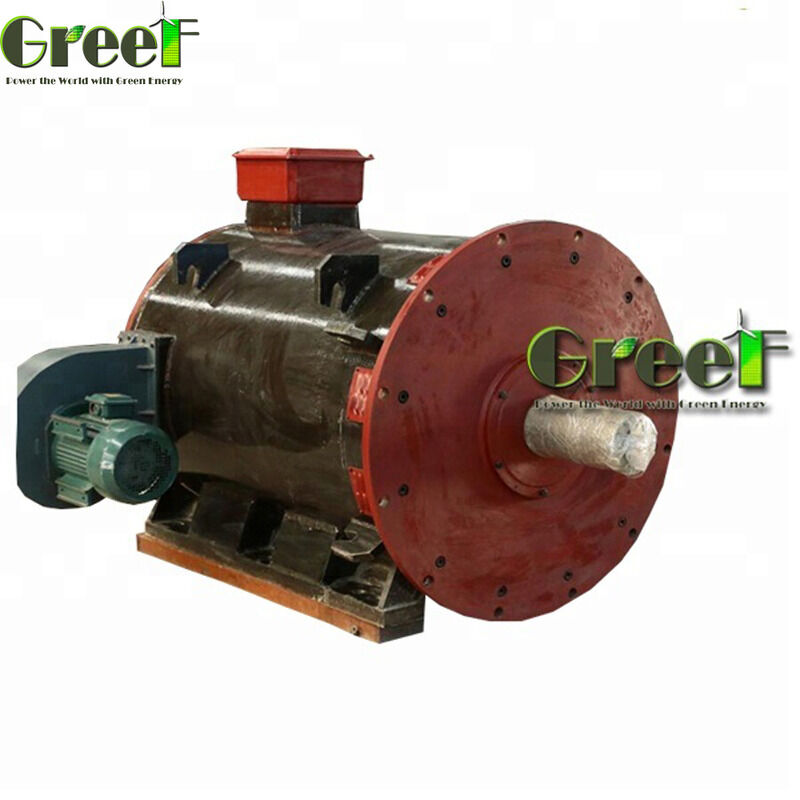

TYP magnet motors are equipped with rotors that utilize permanent magnets. This advanced design brings several key benefits to the motor's performance, including enhanced efficiency and increased power density within the same frame size.
These motors are operated using frequency inverters, which enable them to deliver consistent torque over a broad range of speeds. Even at low speeds, TYP magnet motors maintain high efficiency, outperforming traditional induction motors. Additionally, they do not require forced ventilation, which further contributes to their energy savings and reliability.
W21 magnet motors are specifically designed for low-speed applications. They operate with minimal noise levels and contribute to significant energy savings, making them an excellent choice for environments where quiet and efficient operation is essential.
This motor saves up to 30% more energy compared to traditional induction motors driven by inverters. It operates with high efficiency across a wide load range, from 20% to 110% of its rated capacity, achieving measured energy savings between 10% and 40%.
Additionally, it boasts a very high power factor, close to 1.0 at rated conditions and always above 0.95. This reduces the stator current and minimizes copper losses, enhancing overall energy efficiency.
This motor delivers consistent torque throughout a broad range of speeds without the need for forced ventilation. It is perfectly suited for applications that require variable speed and constant torque, even at low speeds, and it operates without requiring an encoder.
The bearings provide an L10 lifespan of up to 100,000 hours, equivalent to more than 10 years of continuous operation. They are equipped with grease nipples to allow re-lubrication, thus reducing maintenance downtime and extending service intervals.
Equipped with powerful NdFeB (Neodymium/Iron/Boron) rare-earth magnets, this motor features magnetic strength roughly 18 times greater than traditional ferrite magnets. The magnets are coated with a protective epoxy layer that ensures excellent mechanical durability and resistance to corrosion.
PTC (Positive Temperature Coefficient) thermistors are embedded within the windings to provide comprehensive protection against overheating caused by phase loss, overload, or voltage irregularities. This integration enhances the motor's reliability and safety.
As a synchronous motor, the rotor speed precisely matches the stator's rotating magnetic field speed, eliminating slip and rotor power loss. This results in highly stable speed performance, unaffected by voltage fluctuations or load variations, thereby improving control accuracy.
The motor features a maximum torque/current ratio control mode that maintains a high power factor throughout the entire speed range. This control reduces the motor's stator current by 15% to 30%, which in turn lowers cable transmission losses and effectively increases cable capacity.
Thanks to its high efficiency and reduced losses, the motor experiences a temperature rise that is 15 to 20°C lower than that of comparable asynchronous motors under identical operating conditions.
This motor is broadly utilized in various industries, including injection molding machines, air compressors, pipe making machines, hydraulic equipment, food machinery, extruders, wire drawing machines, and pharmaceutical devices. It must be paired with a dedicated permanent magnet motor inverter for proper operation.
Replacing a 37kW IE2 (GB3) induction motor with this motor can result in annual energy savings of approximately 9,000 RMB, assuming continuous 24/7 operation. This makes it a cost-effective solution for energy-conscious applications.
The TYP series high-efficiency permanent magnet frequency conversion synchronous motors are designed for a wide range of industrial applications. These motors are known for their energy-saving features and reliable performance.
They are extensively utilized in various types of machinery, including injection molding machines, air compressors, and pipe making equipment. Their adaptability makes them suitable for both heavy-duty and precision tasks.
In addition, these motors are commonly found in hydraulic machinery, food processing machines, cement pipe manufacturing equipment, plastic extruders, wire drawing machines, and pharmaceutical devices. Their advanced design ensures consistent operation across diverse industries.
Greef offers customized Permanent Magnet Motor solutions tailored to meet your specific needs. Our model TYP, a high-quality 3-phase AC Synchronous Motor, is designed and manufactured in China with CE certification, ensuring reliability and performance. As a low noise motor, this Permanent Magnet Electric Motor provides excellent operating conditions with minimal sound disturbance.
Our Permanent Magnet Motor features an Insulate Grade H, guaranteeing durability under high temperature conditions, and delivers superior efficiency as a High Efficiency Magnet Motor. Whether you require a single set or bulk orders, we accommodate a minimum order quantity of 1 set with negotiable pricing to fit your budget.
Packaging is carefully handled with foam and plywooden cases to protect your investment during shipment. The delivery time is typically 25 working days, and we accept flexible payment terms including T/T, Western Union, MoneyGram, and L/C for your convenience. Trust Greef for your motor supply needs with strong supply ability and dedicated service.
The Permanent Magnet Motor is carefully packaged to ensure it arrives in perfect condition. It is securely placed in a custom-fitted foam insert within a sturdy cardboard box to protect against shocks and vibrations during transit.
All packaging materials are chosen to provide maximum protection while being environmentally friendly. The box is clearly labeled with handling instructions and product information for easy identification.
For shipping, we use reliable carriers with tracking options to ensure timely and safe delivery. Depending on the destination, the motor can be shipped via air, sea, or land freight, with appropriate customs documentation provided for international shipments.
Before dispatch, each motor undergoes a final quality inspection and is securely sealed to prevent any damage or contamination during transportation.
